Haenaem Total HaeNaem Bur Kit 001 Rent 0001

Total HaeNaem Bur Kit is used for cutting hard tissues - tooth or bone. Total HaeNaem Burs are made of steel, stainless steel, tungsten carbide and diamond grit.

There can be a bewildering range of dental burs in any dental catalogue, but for basic veterinary use only a few burs are needed.

These kits often come in a custom bur block and the burs included are often selected by a noted clinician.

When drilling with the world-patented bone densification drill “Haenambur”, no bone loss or overflow occurs.

POINT VIEW:

Maxillary Sinus Autografting is secure only by Drilling
Improves bone density from D4 to D2 which is weak due to drilling
Excellent Ridge expansion effect only by drilling
Maximize the benefits of the procedure with two special drills, the Maxillary Sinus lifting drill and the bone extension drill
Safe surgical operation due to the forward direction drilling like the existing drill direction is possible

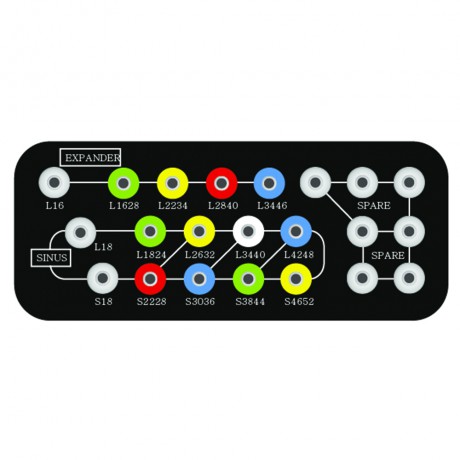

The components:

Pilot Drill (RPM 800-1000): Making first hole to the point of perforation before using osseodensif ication burs
Expander 20 Drill (RPM800~1000)
Osseodensification Bur (RPM 800-10001): By using clockwise direction, perform general drilling in a bouncing-pumping motion with copious irrigation
SINUS 10 Drill (RPM800~1000)


Clinical Advantages:

Easy & Safety maxillary sinus autografting
Early fixture fixation on general implant placement
Enhance bone density for poor bone quality through bone condensing
Pain I Swelling I Recovery Period Reduction


Direction of Use:

1. By using the pilot drill, make first hole with a residual thickness of approx imatelylmm from the sinus floor (RPM 800-1000)

2. Depending upon the implant type and diameter, begin with the narrowest osseodensification bur (001824) with repeatedly bounding­ pumping motion

(RPM 800-1000)

3. As the next osseodens ification bur in the osteotomy, bone will be pushed toward the apical end and will begin to gent ly lift the membrane and autograft compacted bone.

4. Use the sequential osseodens ification burs with repeatedly bouncing-pumping motion to achieve maximum membrane lift of 3mm and reach f inal desired width for implant placement



Based on the experience and technology of manufacturing products of domestic implant companies leading the global market, The Haenaem bur kit is a kit that can be done with osseodensification, bone width expansion, maxillary sinus autogenous bone elevation.

The characteristics of the use of the haenaem bur Kit are that the bone expansion and maxillary sinus lift bur are separated for use to maximize the advantage, and the conventional driller who is familiar with forward drilling does not need to change the implant engine setting and eliminates mistake caused by the rotation direction.

Summarize the advantages of the haenaem Bur Kit :

First, it is possible to increase the Bone quality by the osseodensification , even if the bone quality is not good, it can accelerate the loading time. Second, it is possible to perform safe surgery by reducing pain after small swelling surgery with autologous bone graft through Crystal Approach. Third, it is possible to expand the bone safely by using a drill specialized in the narrow width of the mandible.

Fourth, in many cases where extraction and healing are insufficient, drilling alone can obtain a problem, so that fixing can be safely obtained when planted in septum.
